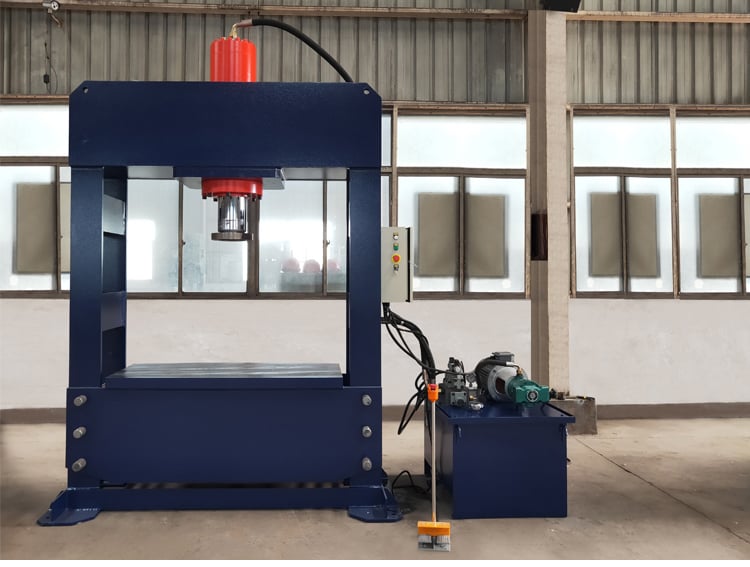

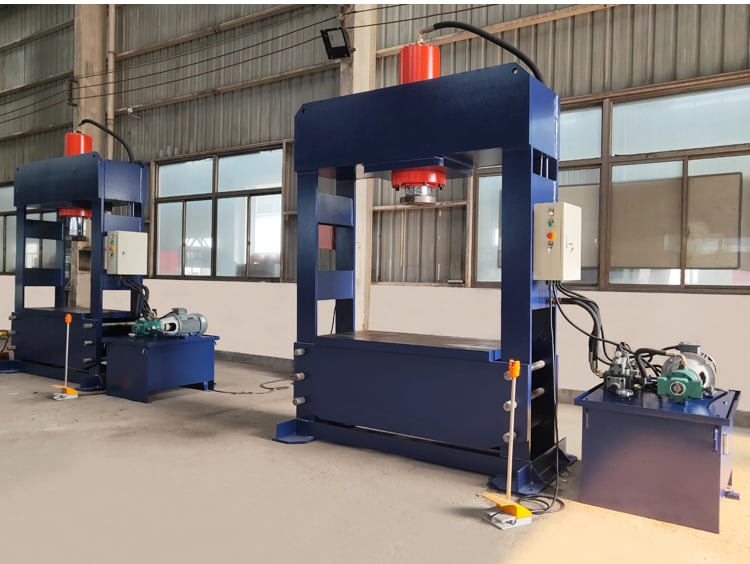

Gantry Hydraulic Press Machines

Gantry Hydraulic Press Machines

  • Overview
  • Inquiry
  • Related Products
Gantry Hydraulic Press Machines

Gantry Hydraulic Press Machines

  • Product Details

Gantry Hydraulic Press Machines details

Product Features

1. Body structure--- Three beams and four columns structure,ensuring stability and power equality.Three beams are welded with tempering treatment.

2. Cartridge valve integrated hydraulic system: long service life, less hydraulic impact and reduce leak point .

3. Hydraulic system equipped with pre-release device to reduce hydraulic force impact.

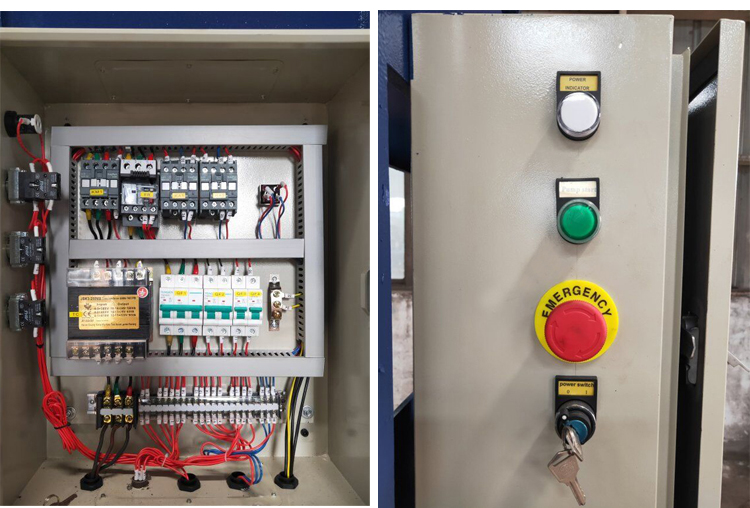

4. Operation button centralized control and equipped with adjusting and semi-auto model.

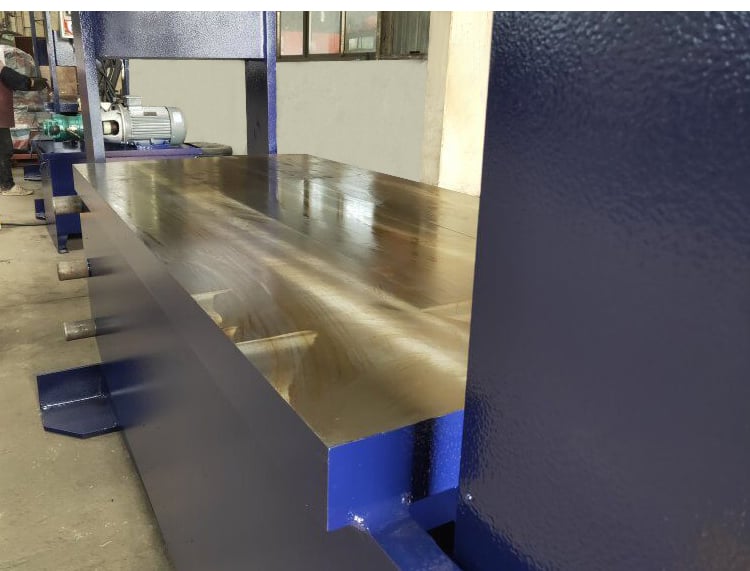

5. Worktable can move up and down, greatly expanding the machine opening and closing height, more convenient to use.

6.Has the small volume, the pressure is high, the structure is simple, the weight is light. High efficient, convenient and safe to operate.

Technical parameter


Specification 20TA 20TB 40TA 40TB 60TA 60TB 80TA 80TB 100TA 100TA
Fluid pressure (MPa) 18 18 23 23 30 30 31.5 31.5 31.5 31.5
Stroke (mm) 200 200 200 200 200 200 240 300 240 240
Gantry span(mm) 420 420 520 520 520 520 520 720 520 520
Worktable size(mm) 360*400 360*400 400*460 400*460 400*460 400*460 500*450 700*450 500*500 500*500
Motor(KW) 2.2 3 3 5.5 3 5.5 5.5 5.5 5.5 5.5
Pumps displacement(ml/r) 6 10 5 10 5 10 10 25 10 25
Down speed(mm/s) 12 21 6.5 14 6 12 9 23 7.5 19
Return speed(mm/s) 19 32 9.5 19 8 16 13 34 10 25
weight (KG) 240 240 370 370 380 380 860 880 1200 1200
