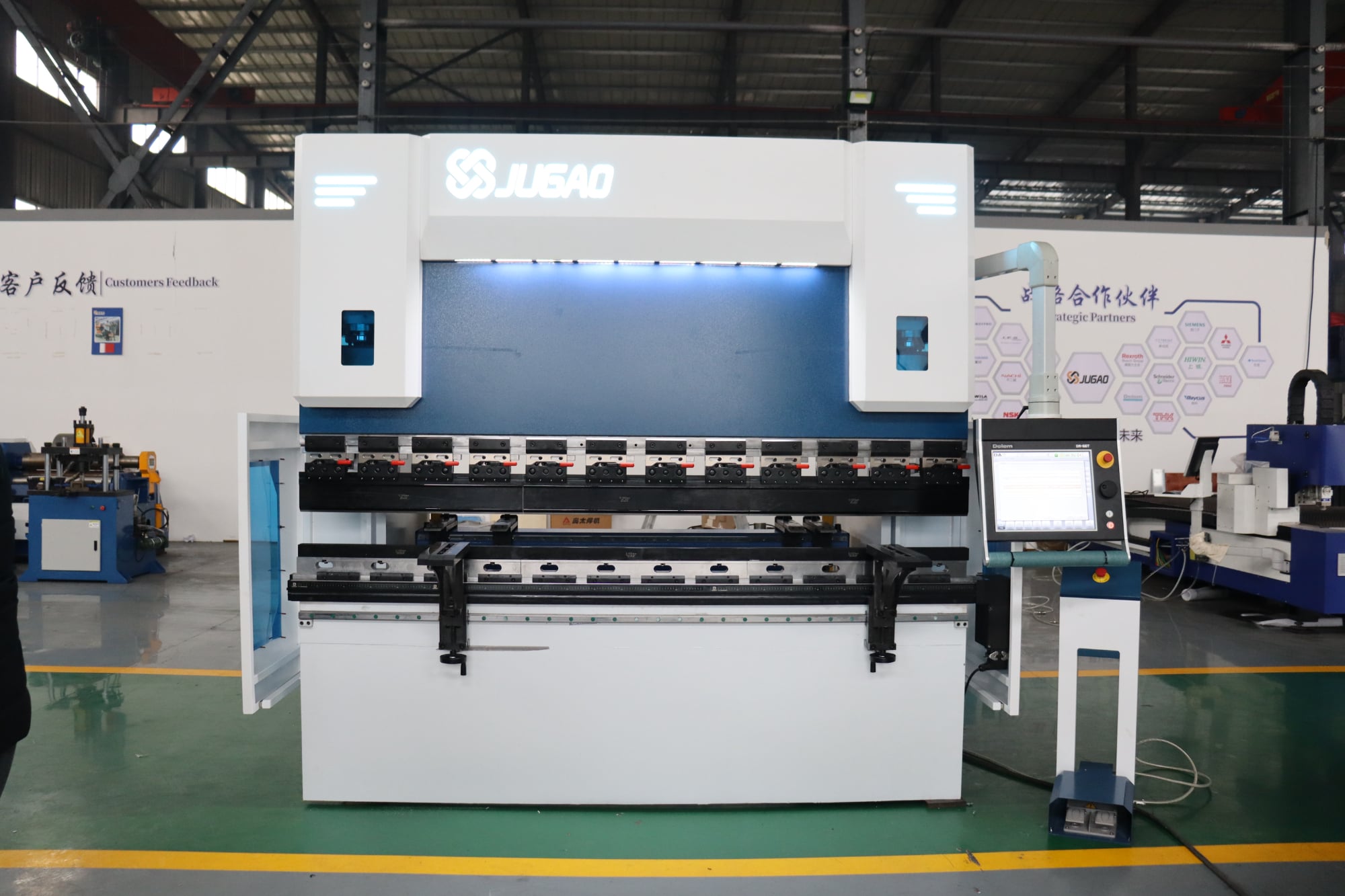

CNC Hydraulic Press Brakes With Delem DA-66T Controller

CNC Hydraulic Press Brakes With Delem DA-66T Controller

  • Overview
  • Inquiry
  • Related Products
CNC Hydraulic Press Brakes With Delem DA-66T Controller

CNC Hydraulic Press Brakes With Delem DA-66T Controller factory

Product Features

1. Multi-language CNC operating system

2. Silent and reliable internal gear pump

3. Hydraulic system regulated by proportional valves

4. Combination of brushless drive and motor with "can open" digital technology, high precision backgauge which permits permits fast movements of the axes.

5. High precision optical lines

6. Adjustable clampings

7. Hardened, grinded tools and clamps for quick tools adjustment

8. Complete backgauge fingers on double linear guide

9. Stainless steel front supports adjustable in height

10. Automatic mechanical crowning

11. Electrical panel with high quality components

12. European safety standards Start&Stop system

Sample show

CNC Hydraulic Press Brakes With Delem DA-66T Controller factory

Accessories brand list

CNC Hydraulic Press Brakes With Delem DA-66T Controller details

OPITING PART

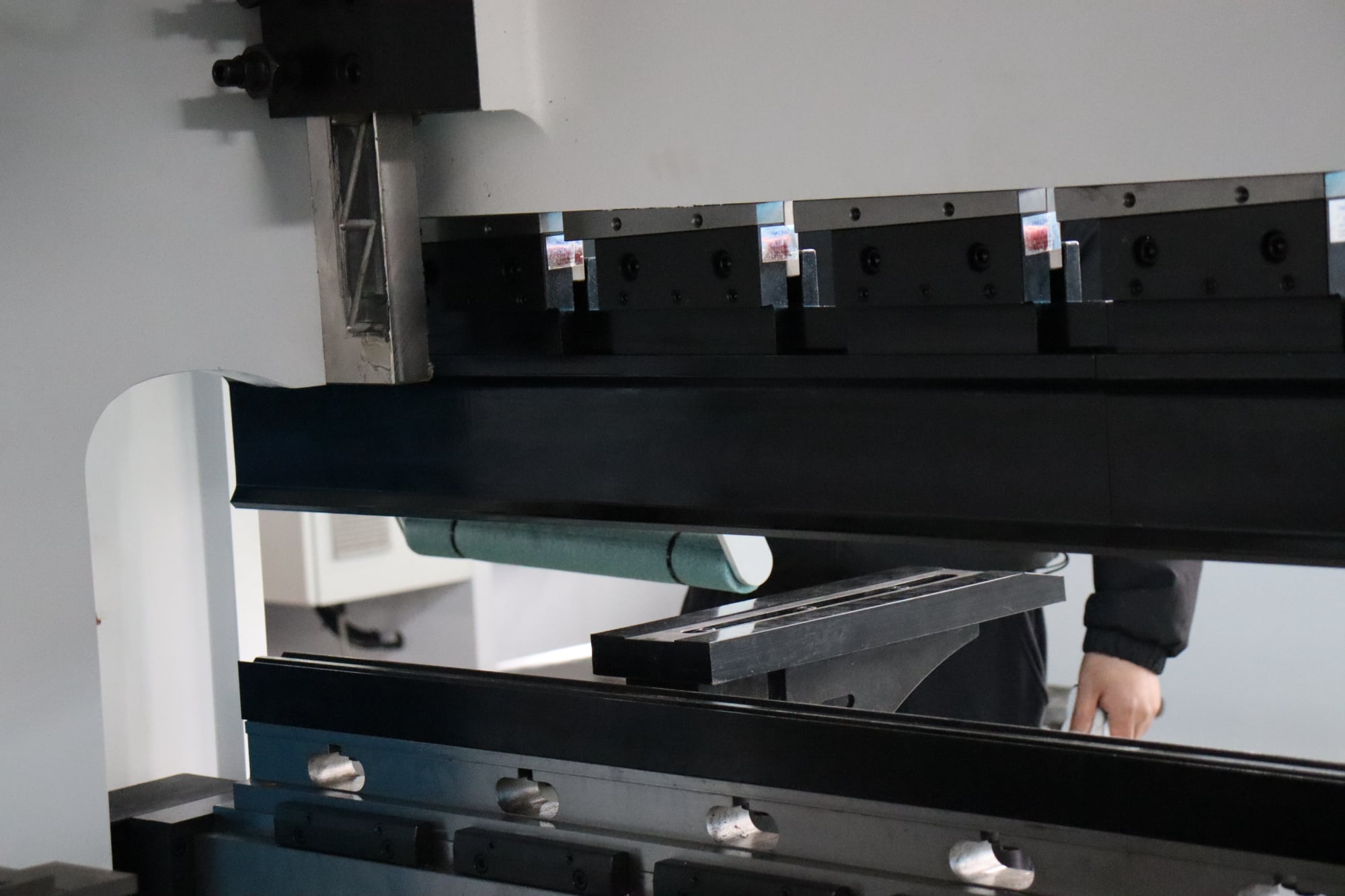

Upper Die And Down Tool

CNC Hydraulic Press Brakes With Delem DA-66T Controller details

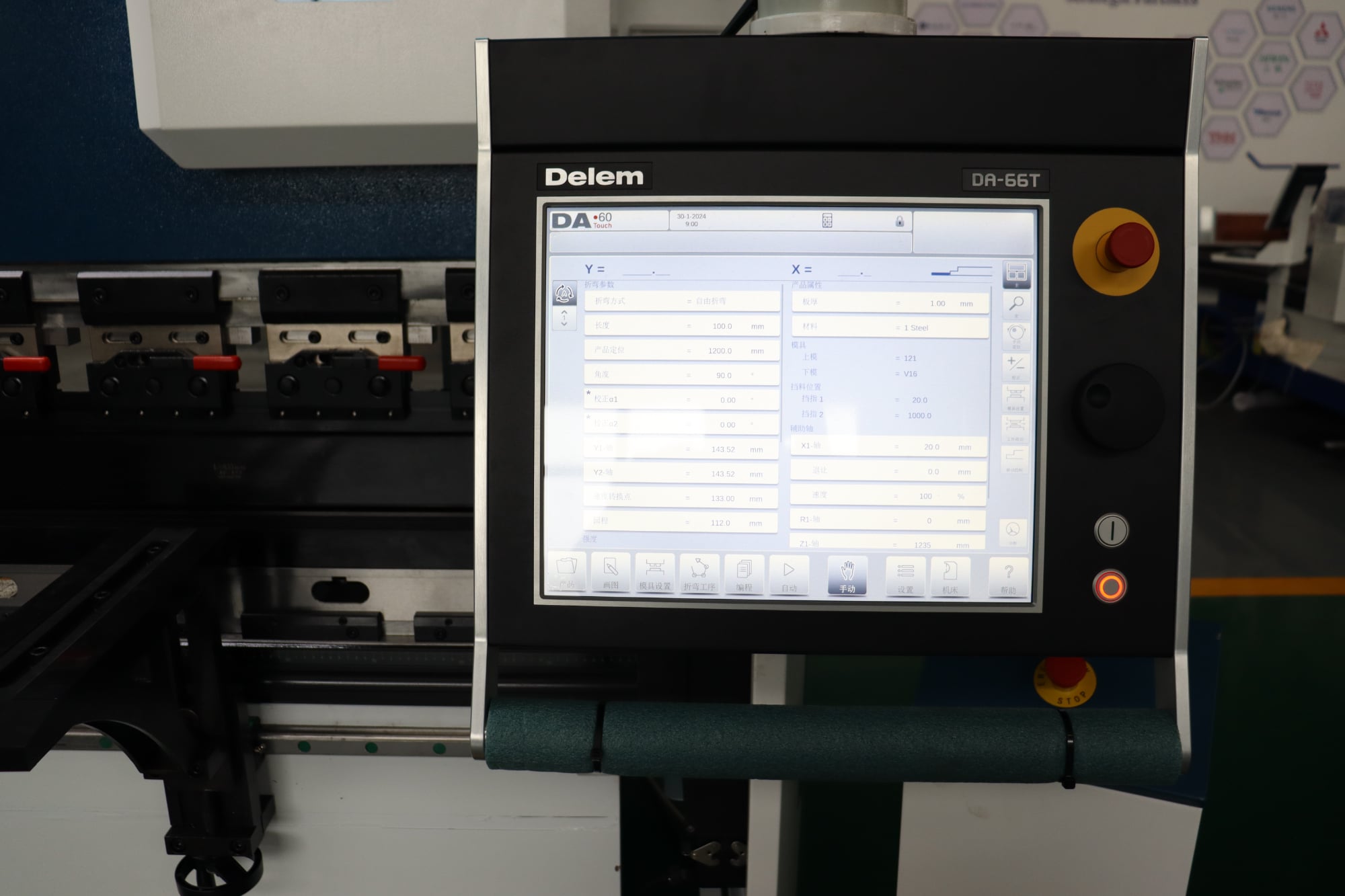

Controller

CNC Hydraulic Press Brakes With Delem DA-66T Controller details

CNC Hydraulic Press Brakes With Delem DA-66T Controller supplier

CNC Hydraulic Press Brakes With Delem DA-66T Controller factory

CNC Hydraulic Press Brakes With Delem DA-66T Controller factory

CNC Hydraulic Press Brakes With Delem DA-66T Controller manufacture

CNC Hydraulic Press Brakes With Delem DA-66T Controller supplier

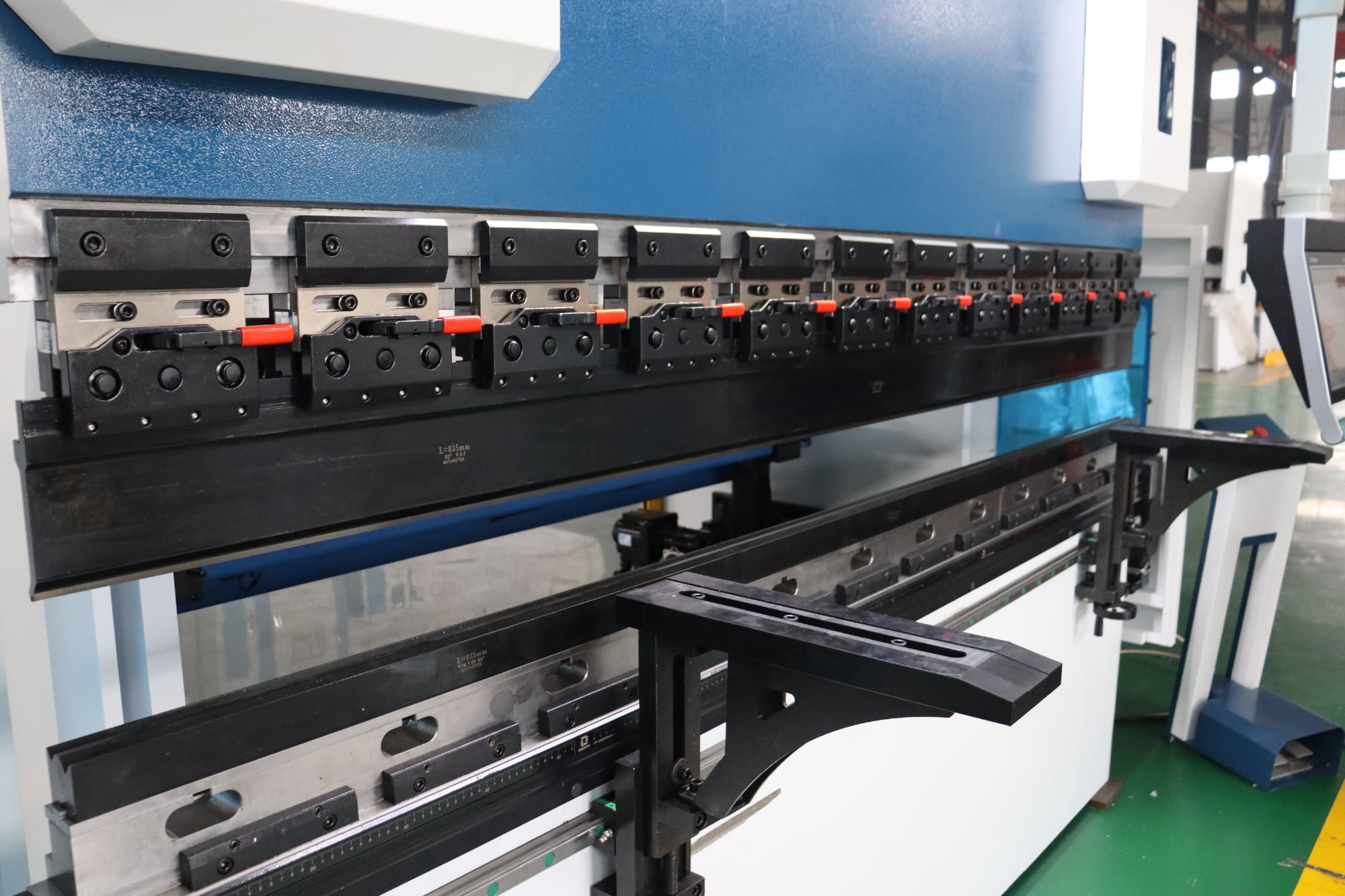

Back Gauge Of Press Brake

CNC Hydraulic Press Brakes With Delem DA-66T Controller supplier

7 Axis CNC Back Gauge With X,Y1,Y2,R,Z1,Z2,V 6+1-Axis                                                Safety Arrangements—— DSP -AP-RS Laser safe                            ——DSP -TX Laser safe

CNC Hydraulic Press Brakes With Delem DA-66T Controller details

Hydraulic Up Clamping SystemExpress Down Clamping System

CNC Hydraulic Press Brakes With Delem DA-66T Controller factory

Wireless Foot PedalSheet Supports Systems

CNC Hydraulic Press Brakes With Delem DA-66T Controller supplier

Laser line For Bending Without Back gauge

CNC Hydraulic Press Brakes With Delem DA-66T Controller details

Angle Measurement System                                                                                                                                Special Fingers

CNC Hydraulic Press Brakes With Delem DA-66T Controller manufacture

Front Sheet lifters——CNC Front Support——Lengthened Front Support

CNC Hydraulic Press Brakes With Delem DA-66T Controller manufacture

Robot For press brake                                                                                                                                                                             Cooling System

CNC Hydraulic Press Brakes With Delem DA-66T Controller manufacture

Products Details

CNC Hydraulic Press Brakes With Delem DA-66T Controller manufacture

Technical parameter



Model Nominal Pressure   (kn) Length of table   (mm) Distance Between  Housing (mm) Throat Depth (mm) Stroke (mm) Open Hight(mm) Main Motor (kw) Dimensions (L   × W × H)(mm)
40/2000 400 2000 1600 200 110 335 4 2545×1510×2050
40/2500 400 2500 2000 200 110 335 4 2950×1510×2080
63/2000 630 2000 1600 250 110 350 5.5 2555×1600×2130
63/2500 630 2500 2000 250 110 350 5.5 2960×1600×2180
63/3200 630 3200 2600 250 110 350 5.5 3740×1600×2230
100/2500 1000 2500 2000 350 150 400 7.5 2980×1650×2330
100/3200 1000 3200 2600 350 150 400 7.5 3740×1650×2355
100/4000 1000 4000 3200 350 150 400 7.5 4550×1650×2450
100/5000 1000 5000 4000 350 150 400 7.5 5100×1500×2650
125/2500 1250 2500 2000 350 150 410 7.5 3980×1650×2370
125/3200 1250 3200 2600 350 150 410 7.5 3750×1650×2450
125/4000 1250 4000 3200 350 150 410 7.5 4550×1650×2470
125/5000 1250 5000 4000 350 150 410 7.5 5100×1500×2795
125/6000 1250 6000 4500 350 150 410 7.5 6100×1500×2895
160/2500 1600 2500 2000 350 150 425 11 2980×1715×2410
160/3200 1600 3200 2550 350 150 425 11 3750×1715×2450
160/4000 1600 4000 3200 350 190 450 11 4550×1715×2730
160/5000 1600 5000 4000 350 190 450 11 5100×1570×2900
160/6000 1600 6000 4500 350 190 450 11 6100×1570×3010
200/3200 2000 3200 2600 350 240 460 11 3750×1815×2715
