Comprehensive Guide to Improving Press Brake Efficiency
Table of Contents
Equipment Configuration Optimization
○ Workspace Preparation
○ Equipment Installation Standards
○ Precision Calibration Key Points
Equipment Maintenance Management
○ Daily Inspection System
○ Lubrication Maintenance Standards
○ Preventive Maintenance Plan
Production Efficiency Improvement
○ Speed Optimization Strategies
○ Tooling Management Solutions
○ Quick Die Change Techniques
Troubleshooting Q&A
Summary Recommendations
In modern metal fabrication, the press brake is a critical production asset whose operational efficiency directly impacts a company's production capacity and economic performance. This guide provides a systematic approach to improving press brake efficiency, covering multiple dimensions from equipment configuration and routine maintenance to production optimization. It will help you establish a scientific management system to achieve comprehensive productivity improvements.
Equipment Configuration Optimization
Workspace Preparation
1.Workspace Planning Standards
Ensure the working area is at least 2.5 times the equipment footprint
Maintain floor flatness within ±3mm/2m
Provide illumination between 500-750 lux
2.Environmental Control Requirements
Maintain ambient temperature between 15-30°C
Control relative humidity at 30%-70%
Install necessary ventilation and dust extraction systems

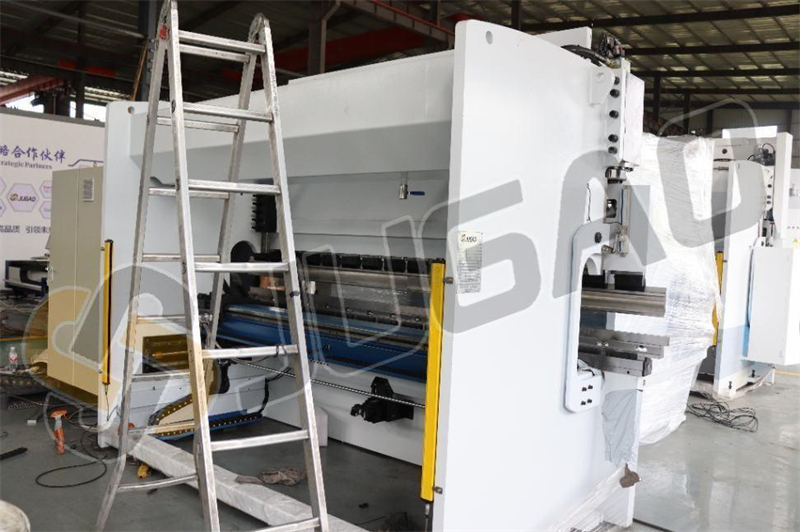

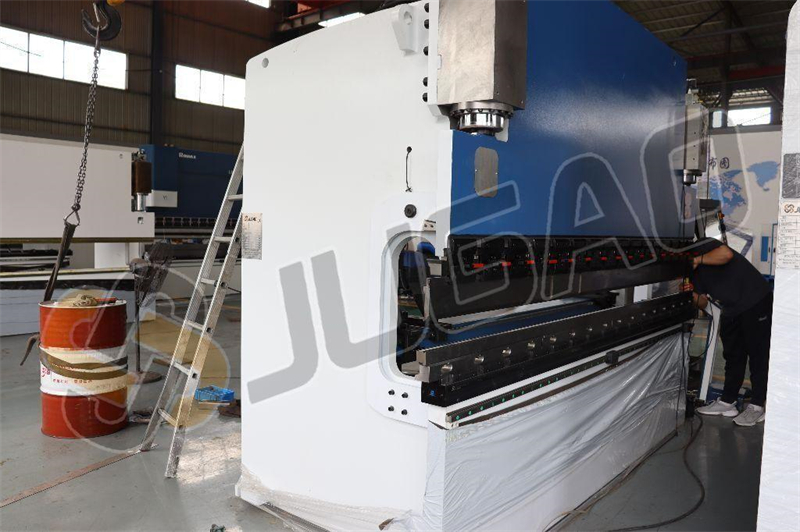

Equipment Installation Standards
1.Installation Key Points
Use foundation bolts of M20 or higher specification
Calibrate with a level having 0.02mm/m precision
Maintain minimum 1.2m clearance from walls

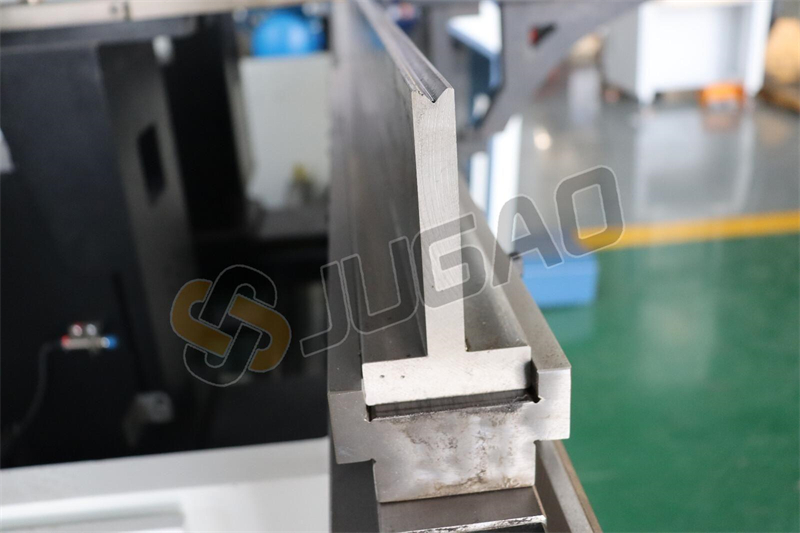

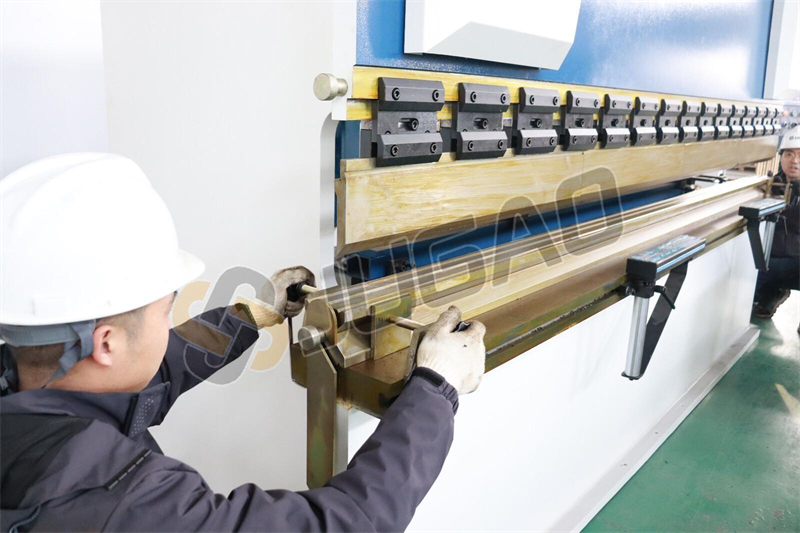

2.Tooling Installation Process
Select high-precision tooling meeting ISO standards
Use torque wrenches for installation
Conduct no-load test runs
Precision Calibration Key Points
1.Standard Calibration Process
Perform mechanical leveling first
Conduct hydraulic system pressure tests
Verify bending angle accuracy
2.Accuracy Verification Methods
Use laser interferometers for positioning accuracy
Employ CMM for bend angle verification
Establish equipment accuracy records
Equipment Maintenance Management
Daily Inspection System
1.Inspection Checklist
Hydraulic system pressure values
Electrical system insulation performance
Mechanical transmission component status
2.Inspection Frequency Standards
Pre-operation mandatory checks
Shift-based inspection items
Weekly focus inspection items
Lubrication Maintenance Standards
1.Lubrication Point Diagram
Slide rail lubrication points
Hydraulic cylinder seal areas
Transmission gear lubrication points
2.Lubrication Interval Standards
Replenish grease every 8 hours
Replace lubricating oil every 200 hours
Seasonal lubrication adjustments
Preventive Maintenance Plan
1.Maintenance Schedule
Minor service every 500 hours
Intermediate service every 2,000 hours
Major overhaul every 8,000 hours
2.Maintenance Content Standards
Hydraulic oil replacement
lritical component NDT inspection
System performance testing
Production Efficiency Improvement
Speed Optimization Strategies
1.Parameter Setting Standards
Rapid traverse speed: 80-120mm/s
Working speed: 5-15mm/s
Return speed: 100-150mm/s
2.Speed Matching Principles
Higher speeds for thin materials
Lower speeds for thick materials
Segmented speed control for complex shapes
Tooling Management Solutions
1.Tool Life Management
Maintain tool usage logs
Implement tool life alerts
Establish tool classification system
2.Wear Detection Methods
Periodic CMM inspection
Surface roughness measurement
Dimensional accuracy verification
Quick Die Change Techniques
1.Standardized Procedures
Die pre-assembly preparation
Quick positioning technology
Application of automatic clamping systems
2.Time Optimization Methods
Use standardized tooling
Implement parallel operations
Apply quick die change devices
Troubleshooting Q&A
Q: How to ensure consistent bending angles?
A: Recommended measures:
1. Regular equipment calibration
2. Use high-precision angle measurement
3. Establish process parameter database
4. Implement first-piece inspection
Q: Key points for hydraulic system maintenance?
A: Focus on:
1. Oil cleanliness control
2. Seal condition inspection
3. Pressure system stability
4. Temperature management
Q: How to reduce springback effect?
A: Solutions include:
1. Compensation angle setting
2. Multi-stage bending process
3. Material pretreatment
4. Die optimization design
Summary Recommendations
1.Establish Complete Equipment Management System
Develop standardized operating procedures
Implement preventive maintenance plans
Create equipment health records
2.Continuously Optimize Production Processes
Collect and analyze production data
Conduct regular process reviews
Implement continuous improvement programs
3.Enhance Personnel Training
Operational skills training
Equipment maintenance training
Safety production training
By implementing these systematic improvement measures, significant press brake efficiency gains can be achieved, with expected results including:
30%-50% increase in equipment utilization
Product qualification rate exceeding 99%
40% extension in tooling service life
15%-20% reduction in overall production costs
We recommend enterprises develop customized improvement plans based on their specific conditions to gradually achieve comprehensive productivity enhancements. For professional technical support, please feel free to contact our expert team.
