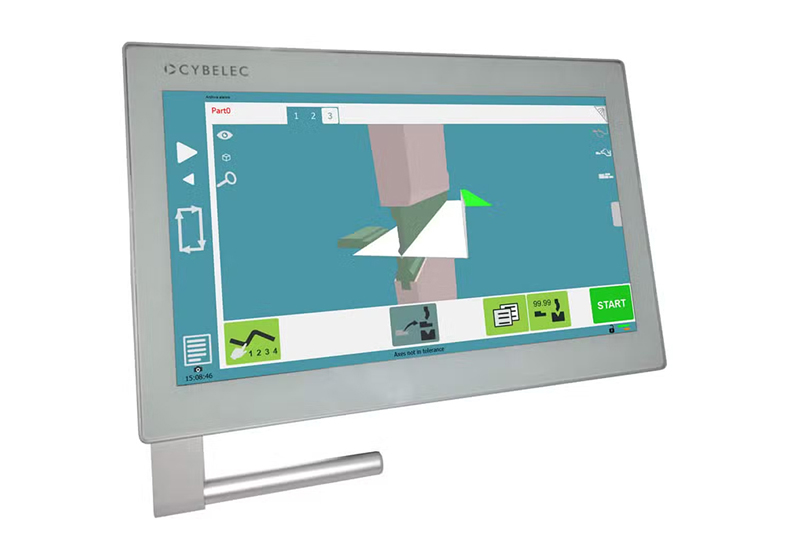

VisiTouch 24
VisiTouch 24 is an outstanding numerical control for press brakes with a new all-in-one solution
24 inches surface full touch-screen and the CNC board mounted on the back of the screen.
Full digital with CANopen® and EtherCAT® field buses controlling many axes
Unique experience with 2D graphic profile drawing (Touch Profile) and 3D viewer thanks to a new quadcore processor unit.
Interface to all kind of hydraulic systems, I/O and analog axes thanks to the CybMVA modules placed inside the cabinets.
In addition to all the features available to controlsimple as well most sophisticated press brakes, hydraulic, electrical and hybrid, VisiTouch Pac offers also an open system allowing customization to be up to the Industry’s 4.0 production management requirements.
Main functions for the user
– Modern 24-inch touchscreen with profiled glass surface that can also be operated with gloves.
– User-friendly graphic interface with intuitive programming.
– Graphical 2D profile drawing (Touch Profile) and 3D visualisation.
– Automatic calculation of bending sequence.
– Maximum bending accuracy thanks to sophisticated algorithms.
– Tandem.
– Tool import.
– Group management for complex productions.
– Pre-bending/Final bending.
– Management of hems.
– Windows 10 operation for multitasking and networking.
– Angle measurement.
– Barcode reader.
– Customisable with Industry 4.0.
– Runs under Windows 10 with UWF cut protection.
