1. Introduction

While large-format laser cutting machines offer unmatched productivity forindustrial-scale manufacturing, their implementation presents several technicaland operational challenges. This document examines the key limitations of thesesystems, providing insights for potential adopters to make informeddecisions.

2. Primary Limitations

2.1 Capital and Operational Costs

• High Initial Investment:

Industrial-scale laser systems (4kW+) typically range from $500,000 to $2M,excluding ancillary equipment.

• Energy Consumption:

Power requirements exceed 50kVA, with hourly energy costs 3-5× higher thanmid-range machines.

• Maintenance Expenses:

Annual maintenance contracts average 10-15% of machine cost due to complexoptics and motion systems.

2.2 Space and Infrastructure Requirements

• Footprint Challenges:

Minimum 10m × 5m floor space needed, plus 3m clearance for materialhandling.

• Structural Modifications:

Often requires reinforced flooring (>5kN/m² load capacity) and vibrationisolation foundations.

• Utility Demands:

High-pressure gas supply (20bar+), 3-phase power, and industrial coolingsystems (30kW+ chillers).

2.3 Material Processing Constraints

2.4 Operational Complexities

• Long Setup Times:

Calibration for thick materials may require 2-4 hours (vs.<1hr formid-size machines).

• Skilled Labor Dependency:

Requires L3-certified operators with 500+ hours of training.

• Cutting Speed Tradeoffs:

20mm steel cuts at 0.8m/min (vs. 6m/min on 3kW machines for 3mm sheets).

3. Technical Challenges

3.1 Beam Quality Degradation

• Focus Depth Limitations:

Beam divergence increases 30% when processing >25mm materials, reducingedge quality.

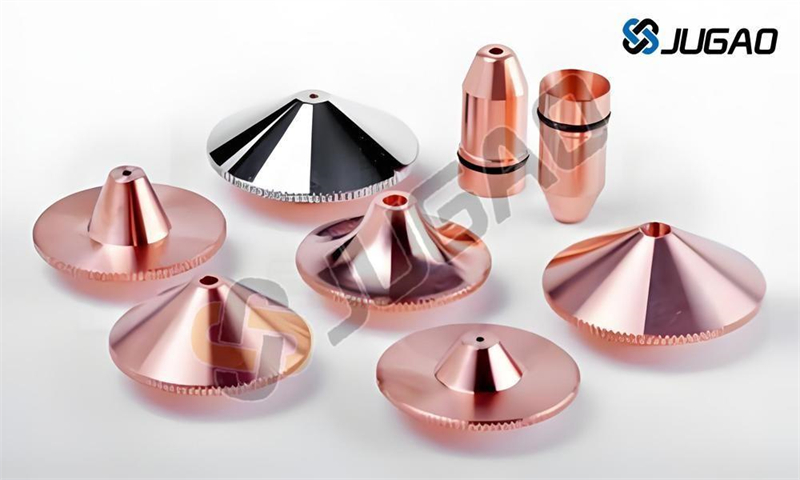

• Nozzle Wear:

High-pressure gas flows (≥2MPa) accelerate nozzle erosion, requiringreplacement every 80-120 cutting hours.

3.2 Thermal Management Issues

• Heat Accumulation:

Continuous operation raises chassis temperature by 15-20°C/hour, demandingactive cooling.

• Optical Component Stress:

Lens thermal shift causes focal length variations up to ±0.5mm duringextended runs.

3.3 Precision Limitations

• Positional Accuracy:

±0.1mm tolerance across 10m beds (vs. ±0.02mm for 2m machines).

• Corner Quality:

Angular error exceeds 0.5° when cutting at >15m/min due to gantryinertia.

4. Productivity Tradeoffs

4.1 Throughput Realities

• Nesting Efficiency Loss:

Large sheets (4m×2m) average only 75-85% material utilization vs. 90%+ onsmaller formats.

• Piercing Delays:

25mm steel requires 8-12 second pierce times, reducing net cutting time.

4.2 Maintenance Downtime

*Mean Time Between Failures

5. Mitigation Strategies

5.1 Cost Optimization

• Implement predictive maintenance using vibration sensors

• Adopt power modulation for thin/thick material transitions

• Utilize off-peak energy pricing schedules

5.2 Quality Control

• Deploy real-time beam profiling systems

• Implement automated nozzle inspection (AI vision)

• Use adaptive cutting algorithms for thickness variations

5.3 Operational Improvements

• Train cross-functional maintenance teams

• Standardize tooling across multiple machines

• Implement palletization systems to reduce setup times

6. Conclusion

Large-format laser cutters deliver unparalleled production capacity butrequire careful evaluation of:

• Total cost of ownership (TCO) over 5-year period

• Facility readiness assessments

• ROI calculations based on actual throughput needs

Recommendation: Conduct a 3-month trial period with equipment vendors tovalidate performance claims before capital commitment.
