Key Determinants for Laser Cutting Machine Sizing and Configuration
Comprehensive Evaluation Framework for Industrial Laser Systems
1. Material Processing Matrix
Metallic Materials Processing Guide
| MaterialType | ThicknessRange | RecommendedLaser Power | SpecialConsiderations |
| CarbonSteel | 0.5-30mm | 1-8kW | Oxygenassist required for >6mm |
| StainlessSteel | 0.5-25mm | 1.5-6kW | Nitrogenprotection for oxidation-free cuts |
| AluminumAlloy | 0.5-20mm | 2-10kW | Anti-reflectioncoating recommended |
| Copper/Brass | 0.5-15mm | 3-8kW | Greenlaser preferred for thin sheets |
| MachineType | FloorSpace | UtilitiesRequirements | AncillarySpace |
| Benchtop | 1.5×2m | 220Vsingle phase | 1mclearance |
| Industrial | 5×10m | 480V3-phase | 3mservice aisles |
| Gantry | 8×20m | 600V3-phase + compressor | 5mmaterial buffer |
| Parameter | Entry-Level | Mid-Range | Industrial | HeavyDuty |
| PowerRange | 500W-1kW | 1-3kW | 3-6kW | 6-15kW |
| PositioningAccuracy | ±0.1mm | ±0.05mm | ±0.03mm | ±0.02mm |
| MaxSheet Size | 1.5×3m | 2×4m | 3×6m | 4×15m |
| CuttingSpeed* | 10m/min | 20m/min | 30m/min | 40m/min |
Non-Metallic Materials Processing

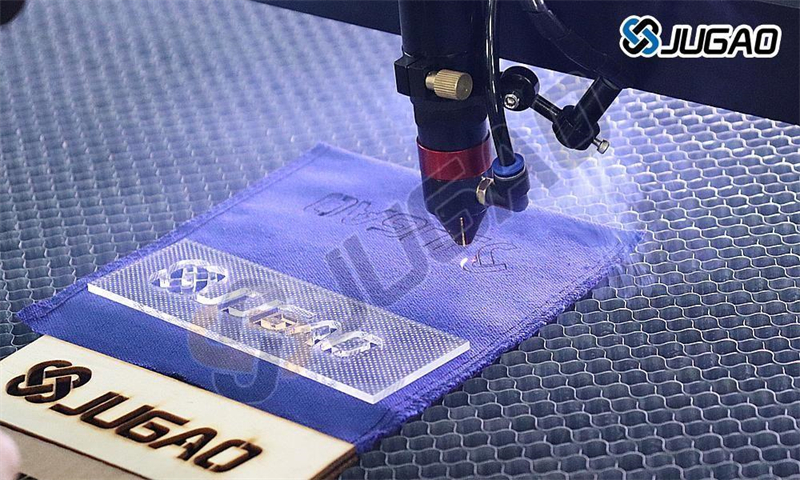

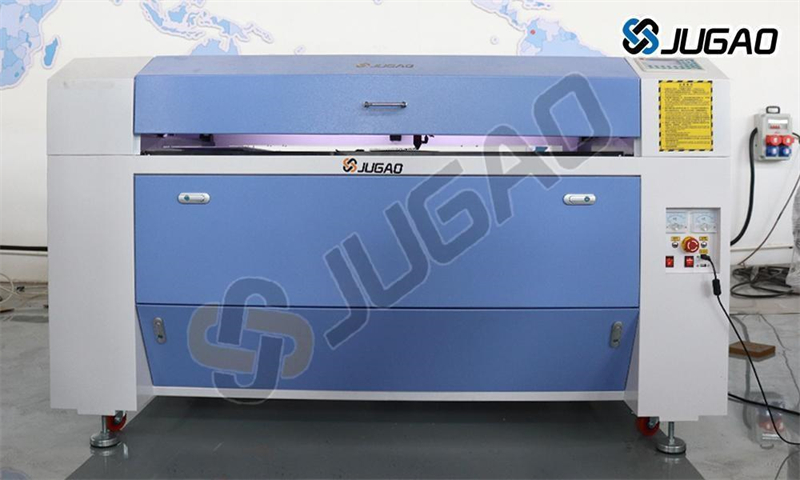

Acrylic: CO₂ laser (40-400W) achieves polished edges up to 25mm
Engineered Wood: Requires 60-150W with air assist for 3-20mm thickness
Technical Textiles: Low-power (30-100W) systems with conveyor feed
Advanced Composite Materials
Carbon Fiber: Pulsed fiber laser prevents delamination
GFRP: Specialized fume extraction systems required
Laminates: Dual-wavelength systems for heterogeneous materials
2. Precision Engineering Requirements
Micro-Feature Cutting Solutions
Ultra-short pulse lasers (picosecond/femtosecond)
Precision linear guides (±5μm positioning accuracy)
Vision-assisted alignment systems
5-axis cutting heads for complex geometries
Large-Format Cutting Systems
Gantry-style machines up to 15m cutting length
Automatic nozzle changing systems
Integrated plate measurement technology
3. Production Capacity Analysis
High-Volume Manufacturing Solutions
Automated material handling systems
Pallet changers for continuous operation
Nesting software optimization (up to 95% material utilization)
Predictive maintenance systems for 24/7 operation
Small-Batch Production Configurations
Compact systems with <2m² footprint
Rapid job changeover capabilities
Manual loading/unloading stations
Multi-function worktables
4. Facility Integration Considerations
Space Planning Guidelines
| MachineType | FloorSpace | UtilitiesRequirements | AncillarySpace |
| Benchtop | 1.5×2m | 220Vsingle phase | 1mclearance |
| Industrial | 5×10m | 480V3-phase | 3mservice aisles |
| Gantry | 8×20m | 600V3-phase + compressor | 5mmaterial buffer |
Environmental Controls
Laser safety enclosures (Class I certification)
Fume extraction systems (2000-5000 CFM)
Climate control (20±2°C for precision work)
Vibration isolation foundations
5. Advanced Configuration Options
Hybrid Cutting Systems
Laser + plasma combination heads
Integrated marking/engaging stations
In-line quality inspection modules
Automated part sorting conveyors
Smart Factory Integration
IIoT connectivity for production monitoring
Cloud-based job scheduling
Digital twin simulation
AI-powered parameter optimization
Technical Specification Comparison
Laser System Selection Matrix
| Parameter | Entry-Level | Mid-Range | Industrial | HeavyDuty |
| PowerRange | 500W-1kW | 1-3kW | 3-6kW | 6-15kW |
| PositioningAccuracy | ±0.1mm | ±0.05mm | ±0.03mm | ±0.02mm |
| MaxSheet Size | 1.5×3m | 2×4m | 3×6m | 4×15m |
| CuttingSpeed* | 10m/min | 20m/min | 30m/min | 40m/min |
*For 1mm mild steel with O₂ assist
Implementation Roadmap
1. Needs Assessment
Material audit and thickness analysis
Production volume forecasting
Precision requirements evaluation
2. System Specification
Laser type selection (fiber/CO₂/disc)
Work envelope determination
Automation level definition
3. Facility Preparation
Power infrastructure upgrades
Floor loading verification
Environmental controls installation
4. Operational Integration
Staff training programs
Process qualification
Maintenance protocol development
This technical guide provides a systematic approach to laser cutting systemselection, enabling:
30-50% improvement in capital utilization
20-35% reduction in operational costs
15-25% increase in production throughput
For optimal results, conduct a comprehensive facility audit and consult withlaser application engineers before finalizing equipment specifications.
