Common Mistakes in Press Brake Operation
Bending machines (press brakes) are critical in metal fabrication forcreating precise bends in sheet metal. However, improper operation can lead todefects, machine damage, and safety hazards. This document examines the mostfrequent mistakes in bending machine operation, their causes, and best practicesto avoid them.
1. Common Operational Mistakes & Solutions

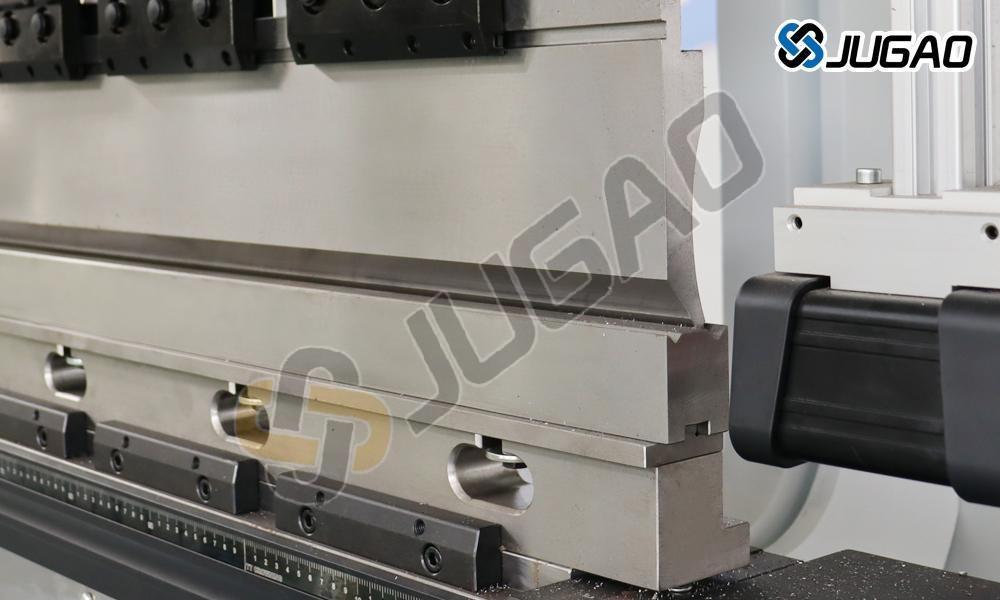

1.1. Incorrect Tool Selection
Mistake:
Using mismatched punch/die combinations (wrong V-opening, radius, ortonnage).
Applying soft tooling for hard materials (e.g., aluminum dies for stainlesssteel).
Consequences:
Poor bend accuracy, excessive tool wear, or machine overload.
Solution:
Follow manufacturer tooling guidelines.
Use proper die width: V-die opening = 6–12× material thickness (T).
1.2. Improper Material Positioning
Mistake:
Misaligned back gauge setting.
Uneven clamping pressure.
Consequences:
Inconsistent bend angles, part asymmetry.
Solution:

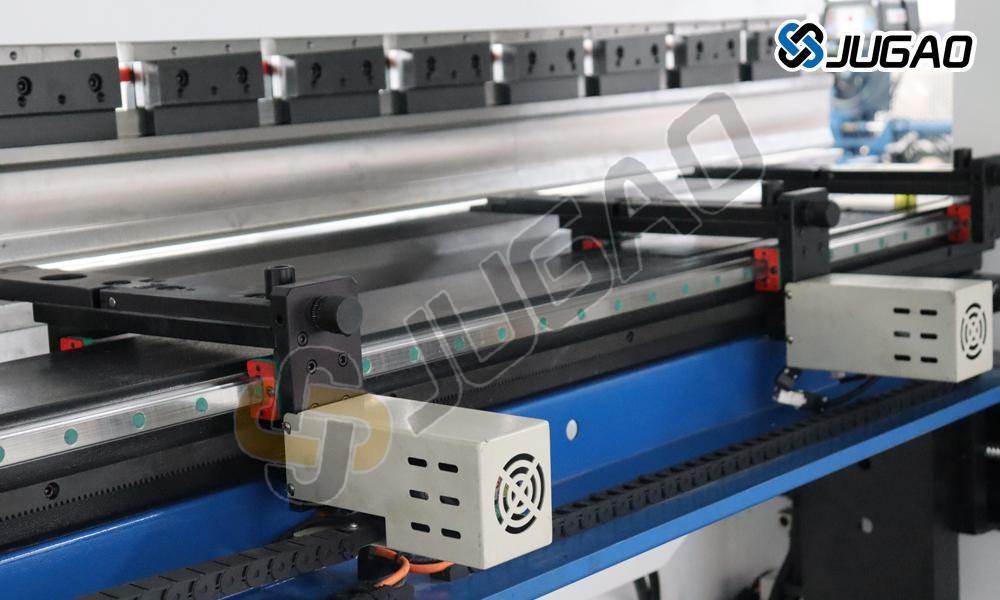

Calibrate back gauges regularly.

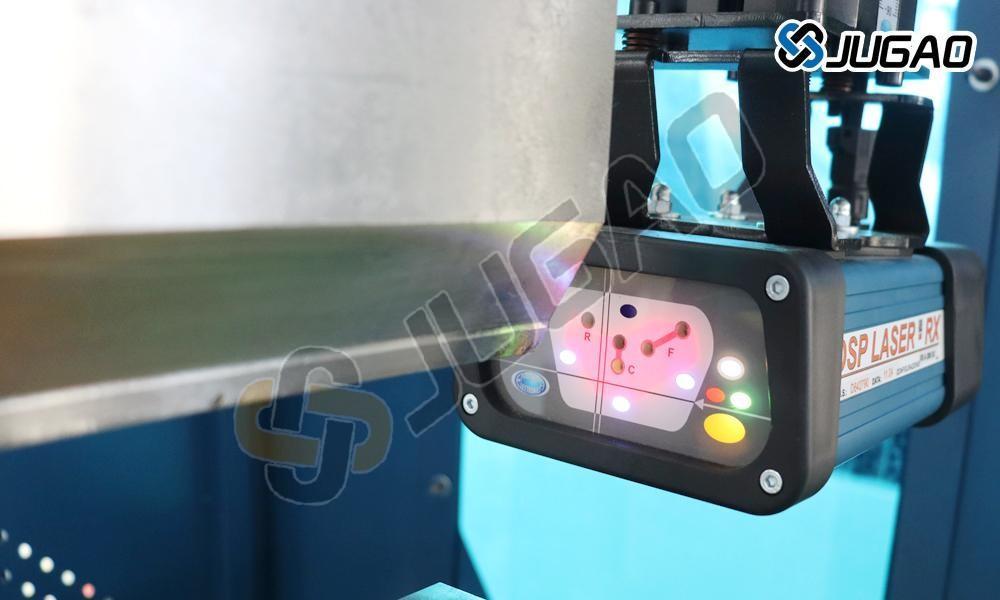

Use laser guides or CNC positioning systems.
1.3. Ignoring Material Grain Direction
Mistake:
Bending parallel to the grain in anisotropic materials (e.g., rolledsteel).
Consequences:
Cracking, reduced bend strength.
Solution:
Always bend perpendicular to the grain when possible.
1.4. Overloading the Machine
Mistake:
Exceeding press brake tonnage capacity for thick materials.
Consequences:
Ram deflection, hydraulic system damage.
Solution:
-
Calculate required tonnage:
Where:
TS = Tensile strength (MPa)
L = Bend length (mm)
T = Material thickness (mm)
V = Die opening (mm)
1.5. Neglecting Springback Compensation
Mistake:
Not accounting for material rebound after bending.
Consequences:
Under-bent parts, rework needed.
Solution:
Overbend by 1°–5° (varies by material).

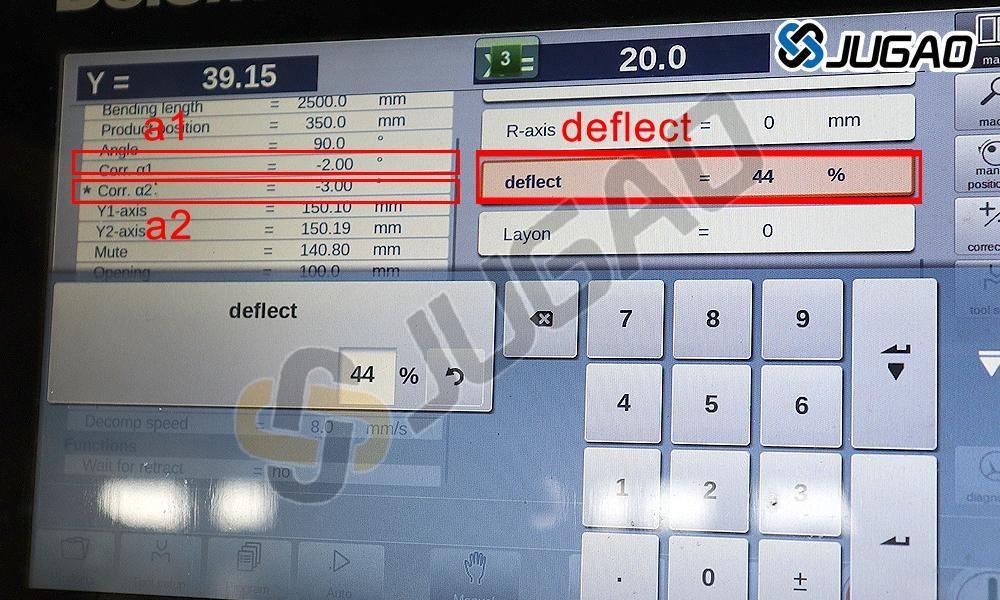

Use CNC-controlled angle correction.
1.6. Poor Lubrication Practices
Mistake:
Running dry bends or using incorrect lubricants.
Consequences:
Scratched surfaces, accelerated tool wear.
Solution:
Apply anti-friction pastes (e.g., molybdenum disulfide).
1.7. Incorrect Bend Sequencing
Mistake:
Performing complex bends in illogical order.
Consequences:
Tool interference, deformed flanges.
Solution:
Follow the "inside-out" rule:
1. Bend innermost features first.
2. Progress toward outer edges.
2. Safety-Related Errors
2.1. Bypassing Safety Guards
Risk:
Hand injuries from pinch points.
Prevention:
Never disable light curtains/finger guards.
2.2. Improper Handling of Large Sheets
Risk:
Dropped materials, muscle strains.
Prevention:
Use vacuum lifters or crane assists.
3. Troubleshooting Defects
| Defect | LikelyCause | Correction |
| Cracking | Radiustoo tight | Increasebend radius |
| Wrinkling | Insufficientpressure | Adjusttonnage |
| Angleinconsistency | Worntools | Replacepunch/die |
| Surfacemarks | Dirty/damageddies | Clean/polishtools |
4. Best Practices for Error Prevention
Operator Training – Regular CNC/programming refreshers.
Preventive Maintenance – Check hydraulic systems, guides.
Job Planning – Verify CAD/CAM simulations before production.
Quality Checks – First-article inspection with protractors.
5. Conclusion
Avoiding common bending mistakes requires understanding material behavior,tooling physics, and machine limits. Implementing structured workflows andsafety protocols minimizes scrap while maximizing productivity.
