How to Easily Check the Precision of a Shearing Machine
Table of Contents
• The Importance of Verifying Shearing Machine Precision
• Step-by-Step Guide to Checking Shearing Machine Precision
a. Examine the Condition of Cutting Blades
b. Check the Alignment of Upper and Lower Blades
c. Conduct Test Cuts with Standard Sheet Materials
d. Evaluate the Squareness of Cut Edges
e. Calibrate and Verify Back Gauge Accuracy
• Practical Tips for Sustaining Shearing Machine Precision
• Frequently Asked Questions
￮ How Often Should Shearing Machine Precision Be Inspected?
￮ How to Enhance the Cutting Accuracy of Shearing Machines?
￮ What Tools Are Required for Precision Verification?
• Conclusion About Shearing Machine Precision
In sheet metal processing, maintaining the precision of shearing machines is the key to obtaining smooth, accurate cuts. If you are troubled by rough cutting edges, inconsistent part sizes, and want to find a simple way to test the accuracy of shearing equipment, this article will provide you with practical solutions. We will walk you through clear and efficient steps to check shearing machine precision, helping you keep stable cutting quality, cut down material waste, and keep your production workshop running efficiently.
The Importance of Verifying Shearing Machine Precision
Before introducing specific operation steps, it is necessary to clarify the significance of regular precision detection for shearing machines. Routine precision inspections can bring the following benefits:
• Keep finished products at a high qualified rate.
• Extend the service life of shearing equipment.
• Reduce material loss and lower production costs.
• Ensure the equipment operates safely and stably.
Through regular precision assessment, you can find potential faults in advance and maintain continuous and stable production efficiency.
Step-by-Step Guide to Checking Shearing Machine Precision
Follow these standardized steps to complete accurate precision verification of shearing machines:
1. Examine the Condition of Cutting Blades
First, carefully check the shearing blades for wear, chipping, or deformation. Blunt or damaged blades are the main cause of poor cutting precision and uneven edges. Check the blade cutting edge carefully, and sharpen or replace the blades in time when abnormalities are found.
2. Check the Alignment of Upper and Lower Blades
Incorrect blade alignment is one of the most common reasons for inaccurate cutting. Use a precision straightedge or feeler gauge to measure the gap between the upper and lower blades, and ensure the gap value meets the technical requirements specified by the equipment manufacturer. If misalignment is detected, adjust and correct the blade position carefully.

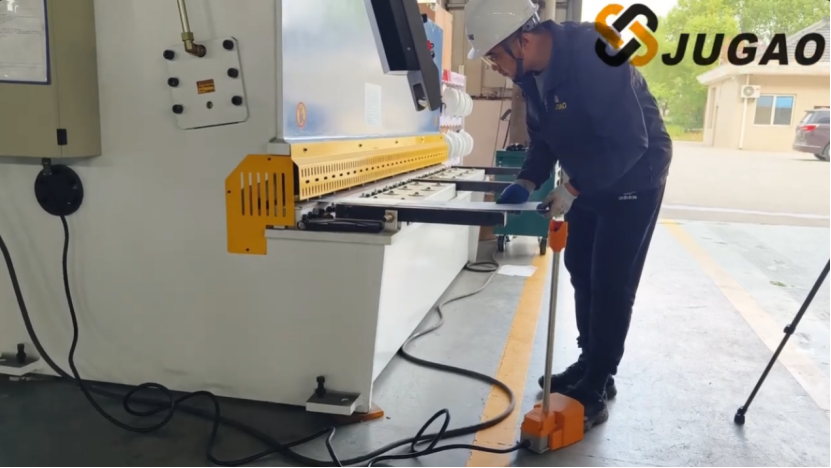

3. Conduct Test Cuts with Standard Sheet Materials
Select sheet metal samples of uniform thickness to carry out trial cutting. After cutting, use digital calipers or micrometers to measure the actual size of the sample accurately, and compare it with the target size to judge the deviation of cutting precision. If the error exceeds the allowable range, readjust the blade parameters.
4. Evaluate the Squareness of Cut Edges
The squareness of the cutting edge is a core index of shearing precision. Use a high-precision machinist square to measure the perpendicularity between the cutting edge and the reference edge of the sheet. If the angle deviates from 90 degrees, recalibrate the squaring arm or back gauge of the shearing machine according to the manufacturer’s instructions.
5. Calibrate and Verify Back Gauge Accuracy
The back gauge plays a vital role in precision fixed-size cutting. Check and calibrate the back gauge regularly to ensure it matches the set size accurately. You can place a calibrated steel ruler or gauge block between the blade and the back gauge stopper to verify the accuracy, and adjust it in time to keep the size stable.
Practical Tips for Sustaining Shearing Machine Precision
Regular precision inspection is essential, and daily preventive maintenance and standardized operation can further improve the accuracy and service life of the equipment. The following maintenance tips are for your reference:
• Routine blade care: Sharpen or replace worn blades regularly to maintain stable cutting precision.

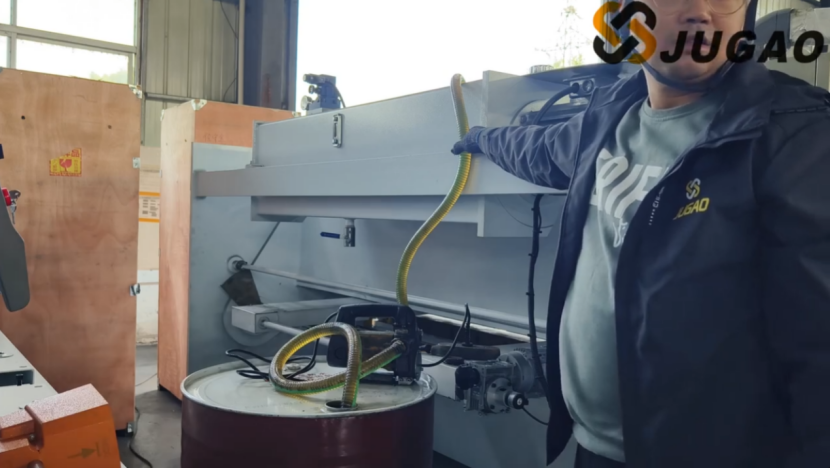

• Scheduled lubrication: Lubricate guide rails, sliding mechanisms and other moving parts according to the equipment manual to avoid precision errors caused by friction.
• Keep the equipment clean: Remove debris and scrap iron from the working area and equipment surface in time to prevent them from affecting the operation accuracy.
• Operator training: Train operators on standard operation and daily inspection methods, so that they can find the early signs of precision decline in time.
Frequently Asked Questions
How Often Should Shearing Machine Precision Be Inspected?
It is recommended to conduct a comprehensive precision inspection at least once a month. The inspection frequency can be increased appropriately according to the production load, material type and sheet thickness processed.
How to Enhance the Cutting Accuracy of Shearing Machines?
Keep blades sharpened or replaced regularly, maintain the correct blade clearance, calibrate the back gauge periodically, and conduct trial cuts frequently to find and correct errors in time.
What Tools Are Required for Precision Verification?
Necessary tools include precision straightedges, feeler gauges, digital calipers, micrometers, machinist squares and gauge blocks. These tools can accurately detect blade alignment, clearance, squareness and dimensional accuracy.
Conclusion About Shearing Machine Precision
Regular inspection of shearing machine precision is the basis for achieving high-quality metal cutting and efficient production. By following the above steps and maintenance suggestions, you can quickly locate accuracy problems, optimize cutting quality, and extend the service life of equipment. If you encounter operation difficulties or need professional support, please feel free to contact the professional JUGAO team—we are committed to helping you maximize equipment performance and support your long-term stable production.
