Precision pipe bending has never been easier
Precision pipe bending has never been easier.
In modern manufacturing, the quality and efficiency of pipe bending directly impact the competitiveness of the final product. Whether you are producing automotive exhaust systems, sporting goods, furniture frames, or industrial pipes, having an easy-to-operate and reliable pipe bending machine is key to improving both productivity and quality.

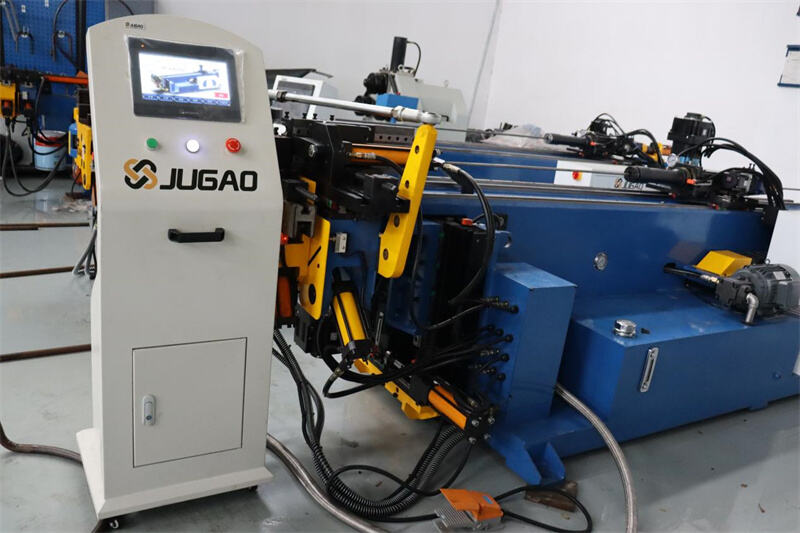

Today, we proudly introduce our new generation of fully automatic pipe bending machines—a perfect blend of extremely simple operation and ultra-high precision, injecting new vitality into your production line.
Why choose this pipe bending machine?

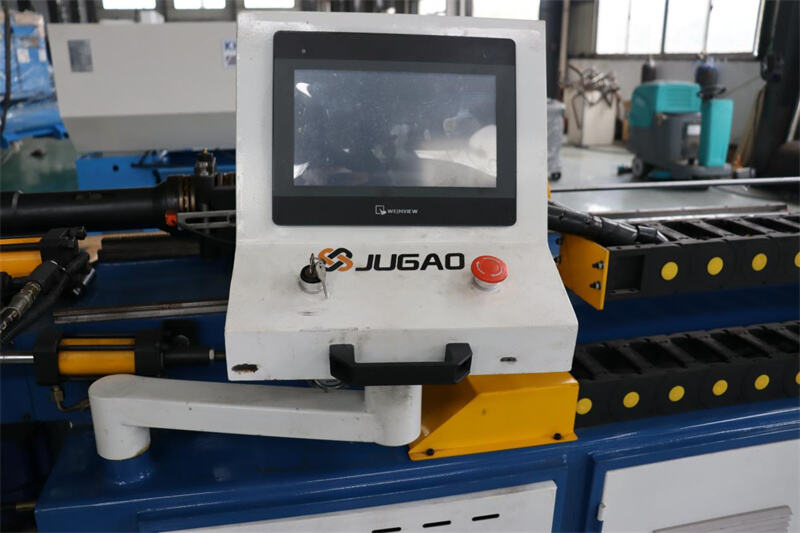

**User-friendly interface, easy to use:** The equipment features a high-resolution touchscreen and a self-developed control system with multiple built-in common pipe bending modes. Operators only need to input pipe parameters and bending angles, and the system automatically calculates and executes the bend, significantly reducing setup time and reliance on skilled workers.

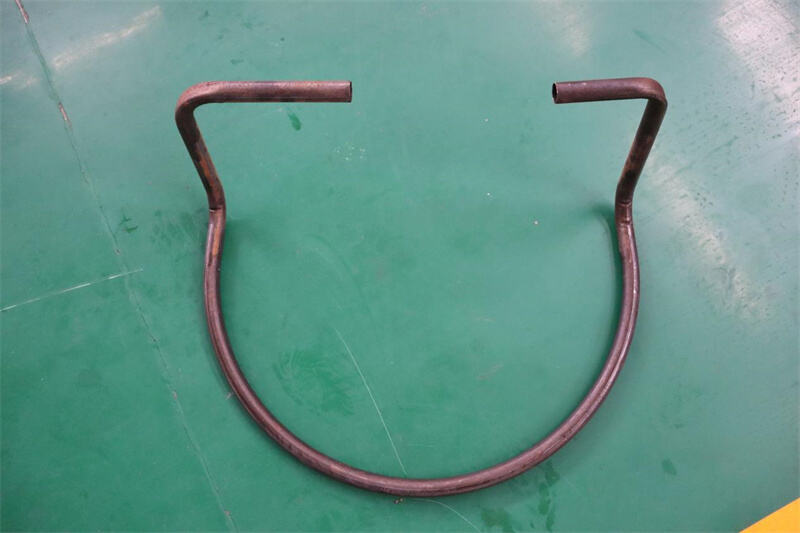

**Servo drive, repeatability ±0.1mm:** Utilizing imported servo motors and precision reducers, coupled with high-precision encoder feedback, ensures consistent angle and position for every bend. Even complex three-dimensional pipe bending is handled with ease, significantly improving the finished product yield.
**Powerful mold and clamping system:** Equipped with high-quality alloy molds, it boasts strong wear resistance and a smooth surface, effectively protecting the pipe surface from scratches. Adjustable hydraulic clamping force accommodates pipes of varying wall thicknesses and materials, including carbon steel, stainless steel, and aluminum.
**Intelligent programming and storage function:** Supports importing CAD drawings via USB or direct manual programming. The system can store hundreds of processing programs, which can be recalled with a single click during production changes, eliminating the need for repeated adjustments. This is particularly suitable for multi-variety, small-batch production.
Highly efficient and energy-saving, stable and reliable. Utilizing an energy-saving hydraulic circuit and standby/dormant function, energy consumption is reduced. Key components are sourced from internationally renowned brands, ensuring stable operation even under prolonged high-load conditions.
Typical application cases
Automotive Industry: Exhaust pipes, bumpers, seat frames, oil pipes
Fitness Equipment: Treadmill handrails, exercise bike frames
Furniture Manufacturing: Metal table and chair legs, screen frames
Construction Engineering: Scaffolding, HVAC ducts, railings
Our equipment has successfully served many well-known domestic enterprises and has been exported to Europe, America, and Southeast Asia, receiving consistent praise from our clients.
Technical Specifications Overview (Optional Models)
Parameter Item | Value Range
Maximum Bending Diameter | 42mm / 63mm / 89mm, etc.
Maximum Bending Angle | 190°
Bending Speed | 0–60°/s Adjustable
Bending Accuracy | ±0.1mm
Control System | High-end PLC + Touch Screen
(Note: Larger specifications can be customized according to customer requirements)
